BitLocker remains one of the most effective security controls for protecting Windows devices against data theft following loss, theft, or unauthorized access. For organisations following guidance aligned with the UK National Cyber Security Centre (NCSC), correctly configuring BitLocker is a critical part of endpoint hardening.

Many organisations deploy BitLocker using Microsoft Intune. However, not every environment uses mobile device management (MDM). Traditional Active Directory environments, air-gapped networks, regulated systems, and hybrid infrastructures often rely on Group Policy instead.

This guide explains how to configure NCSC-aligned BitLocker Group Policies without Intune, using Active Directory Group Policy (GPMC).

The configuration in this guide is based on a BitLocker security policy equivalent to the 2025-NCSC-BitLocker baseline, translated from Microsoft Endpoint Manager settings into standard Windows Group Policy.

What This BitLocker Configuration Achieves

This configuration is designed to:

• Require BitLocker encryption on Windows devices
• Enforce XTS-AES encryption
• Require TPM + PIN startup protection
• Set a minimum PIN length of six digits
• Require recovery information backup before encryption
• Rotate BitLocker recovery passwords where supported
• Encrypt removable and fixed drives
• Reduce recovery information exposure to end users

The configuration prioritises security while remaining manageable for enterprise environments.

Prerequisites Before Configuring BitLocker

Before deploying Group Policies, confirm the following prerequisites are met:

1. TPM Requirements

Devices should have:

• TPM 2.0 preferred
• Secure Boot enabled
• UEFI firmware enabled where possible

To verify TPM status:

1. Press Windows + R
2. Type: tpm.msc
3. Confirm TPM is present and ready.

2. Active Directory Requirements

If using domain Group Policy:

• Devices should be domain joined
• Recovery key storage in Active Directory should be configured

3. Windows Edition Requirements

BitLocker requires:

• Windows 10/11 Pro
• Windows 10/11 Enterprise

BitLocker is not fully manageable through Group Policy on Windows Home editions.

Step-by-Step: Configure NCSC BitLocker Group Policies

Open the Group Policy Management Console (GPMC):

1. Open Server Manager
2. Select Tools
3. Open Group Policy Management
4. Create a new GPO: NCSC BitLocker Policy
5. Right-click the GPO and choose Edit

Navigate to:

Computer Configuration → Policies → Administrative Templates → Windows Components → BitLocker Drive Encryption

You will configure the following settings.

1. Require Device Encryption

The Intune setting Require Device Encryption does not have a direct Group Policy equivalent.

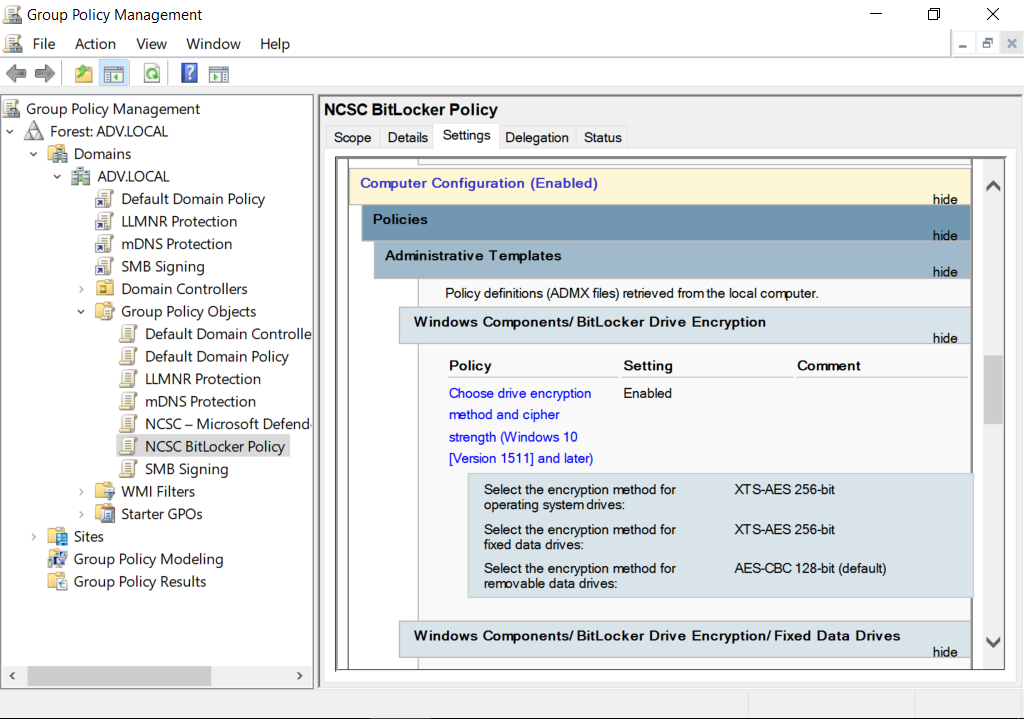

2. Configure Encryption Method (XTS-AES)

Policy Path

Computer Configuration → Policies → Administrative Templates → Windows Components → BitLocker Drive Encryption → Choose drive encryption method and cipher strength

Configuration

Set:

Enabled

Configure:

Drive Type	Recommended Setting
Operating System Drives	XTS-AES 256-bit
Fixed Data Drives	XTS-AES 256-bit
Removable Drives	AES-CBC 128-bit

Why this matters:

• XTS-AES 256 provides stronger encryption for internal drives.
• Removable media often uses lower compatibility settings to avoid interoperability problems.

Click Apply and OK.

3. Allow Standard Users to Encrypt

The Intune setting Allow Standard User Encryption does not have an equivalent Group Policy setting.

4. Configure BitLocker Recovery Password Rotation

There is no direct legacy Group Policy equivalent to modern Intune recovery password rotation.

BitLocker recovery password rotation is primarily available through:

• Microsoft Intune
• Microsoft Entra ID recovery workflows
• Newer Windows management APIs

For on-premises environments using Group Policy, organisations typically rely on:

• Active Directory recovery key escrow
• Recovery password regeneration after incidents
• Helpdesk-controlled recovery procedures

5. Require Additional Authentication at Startup (TPM + PIN)

Policy Path

Computer Configuration → Administrative Templates → Windows Components → BitLocker Drive Encryption → Operating System Drives → Require additional authentication at startup

Configuration

Set policy to:

Enabled

Configure the following:

Setting	Value
Allow BitLocker without TPM	Disabled
Configure TPM startup	Require TPM
Configure TPM startup PIN	Require startup PIN with TPM
Configure TPM startup key	Do not allow
Configure TPM startup key and PIN	Do not allow

This enforces TPM + PIN authentication.

Why this matters:

TPM-only BitLocker protects against offline disk attacks, but TPM + PIN adds protection against device theft and physical compromise.

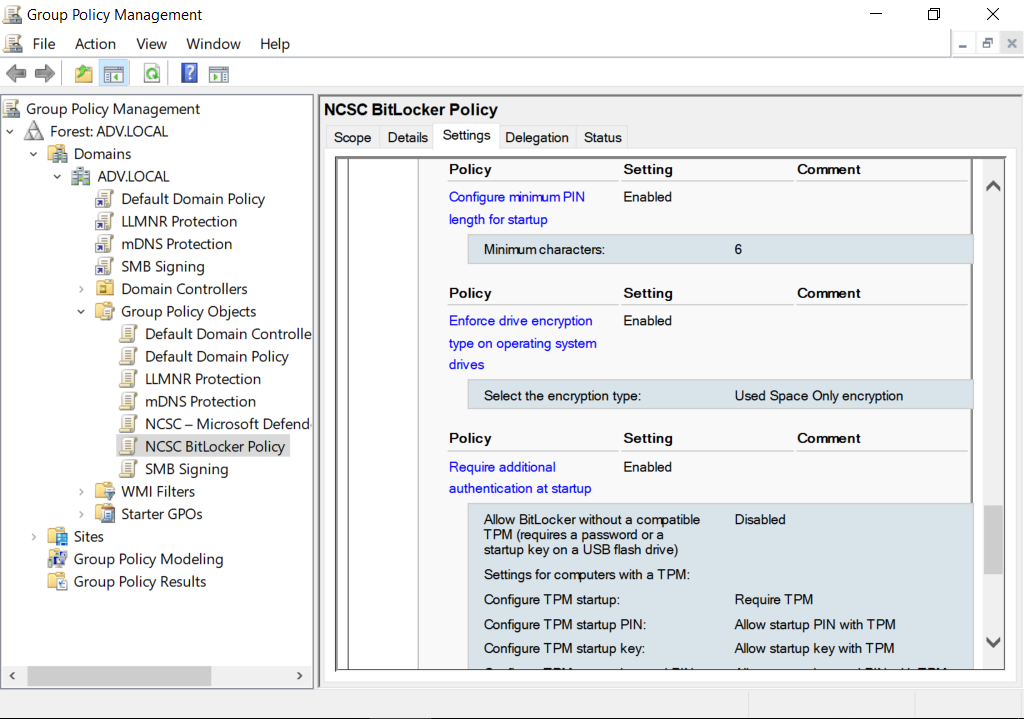

6. Configure Minimum PIN Length

Policy Path

Computer Configuration → Administrative Templates → Windows Components → BitLocker Drive Encryption → Operating System Drives → Configure minimum PIN length for startup

Configuration

Set:

Enabled

Minimum PIN length:

6

A six-digit minimum aligns with stronger authentication practices while remaining usable for end users.

7. Configure Recovery Options

Policy Path

Computer Configuration → Administrative Templates → Windows Components → BitLocker Drive Encryption → Operating System Drives → Choose how BitLocker-protected operating system drives can be recovered

Configuration

Set:

Enabled

Configure:

Option	Recommended Value
Save BitLocker recovery information to AD DS	Enabled
Do not enable BitLocker until recovery information stored	Enabled
Recovery password	Allow 48-digit recovery password
Recovery key	Do not allow
Omit recovery options from setup wizard	Enabled
Allow Data Recovery Agent	Disabled

Why this matters:

This ensures:

• Recovery passwords are centrally escrowed
• Encryption cannot start before backup succeeds
• Users cannot bypass recovery safeguards
• USB recovery keys are avoided

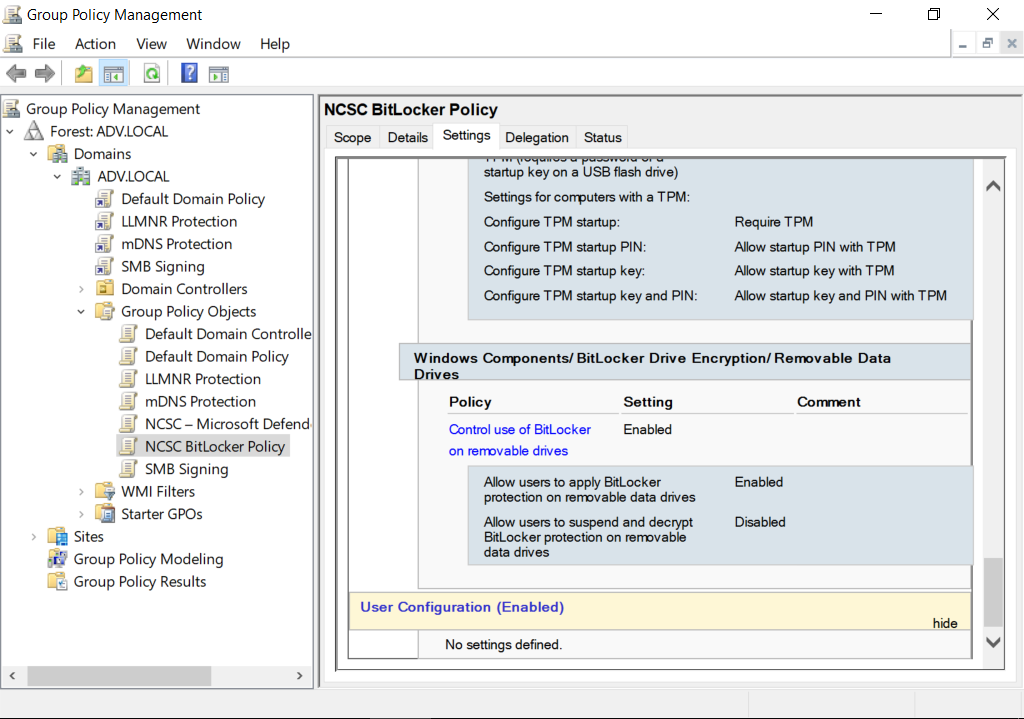

8. Require Encryption for Removable Drives

Policy Path

Computer Configuration → Administrative Templates → Windows Components → BitLocker Drive Encryption → Removable Data Drives → Control use of BitLocker on removable drives

Configuration

Set:

Enabled

Configure:

Require users to apply BitLocker protection on removable data drives

This helps protect USB drives and removable storage.

9. Require Encryption for Fixed Data Drives

Policy Path

Computer Configuration → Administrative Templates → Windows Components → BitLocker Drive Encryption → Fixed Data Drives → Deny write access to fixed drives not protected by BitLocker

Configuration

Set:

Enabled

This prevents unencrypted fixed drives from being written to.

10. Configure Operating System Drive Encryption Type

Policy Path

Computer Configuration → Administrative Templates → Windows Components → BitLocker Drive Encryption → Operating System Drives → Enforce drive encryption type on operating system drives

Configuration

Set:

Used Space Only Encryption

This reduces deployment time while still protecting newly written data.

For new deployments, used-space-only encryption is generally sufficient and significantly faster than full disk encryption.

Force Group Policy Update

After configuring the GPO:

Run:

gpupdate /force

Then reboot the device.

Verify BitLocker status:

manage-bde -status

You can also check:

Control Panel → BitLocker Drive Encryption

Common Mistakes to Avoid

Using TPM Only

• TPM-only protection is weaker than TPM + PIN.
• If devices are lost or stolen, a startup PIN provides additional protection.

Not Escrowing Recovery Keys

• Never deploy BitLocker without recovery key backup.
• Losing recovery information can permanently lock users out of systems.

Allowing USB Recovery Keys

• USB recovery keys introduce operational risk and physical handling issues.
• Recovery passwords stored centrally are generally easier to manage.

Forgetting BIOS Configuration

BitLocker can fail silently if:

• TPM is disabled
• Secure Boot is disabled
• UEFI settings are incorrect

Verifying Policy Application

Use:

gpresult /h report.html

Open the report and confirm BitLocker settings are applied.

You can also verify encryption status:

Get-BitLockerVolume

Final Thoughts

Organisations that do not use Intune can still deploy a secure, centrally managed BitLocker configuration using traditional Group Policy.

An NCSC-aligned configuration should focus on:

• TPM + PIN authentication
• Strong XTS-AES encryption
• Recovery password escrow
• Enforced encryption on removable and fixed drives
• Reduced user bypass opportunities

When implemented correctly, BitLocker provides strong protection against device theft, credential compromise, and offline attacks.
